Components and Accessories

Hydraulic fluid under pressure can be dangerous! An explosive burst or stream of fluid can cause damage to equipment or serious injury to workers nearby. Tube-Mac® supplies and uses only the finest hydraulic hoses and couplings which meet and exceed SAE standards. This, along with our expert manufacturing process, results in reliable, safe and quality products you can depend on.

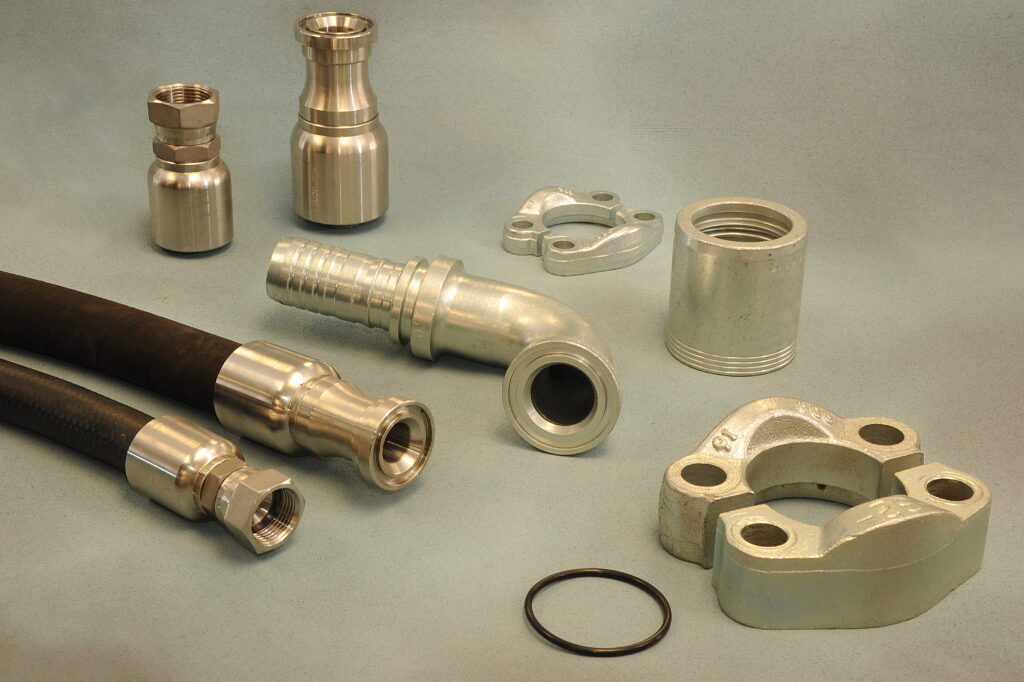

The heavy-duty hydraulic couplings supplied by Tube Mac® are the industry’s finest and feature a tapered flange head, thicker tube walls and a solid one-piece design with no brazed or welded joints. This eliminates potential leak points and provides better reliability with optimum resistance to stress and vibration, increasing the hose assembly life and lowering your replacement and maintenance costs.

Flanges

Flange Reducers

• Elbows
• Manifolds

Tube-Mac® manufactures a complete range of flange adapters to facilitate today’s piping installation demands. Changing flow direction and reducing or adapting from one size to another is accomplished using Tube-Mac®-engineered products. Our machining capabilities are extensive, especially when you need special manifolds and adapters to ensure a superior hydraulic piping system.

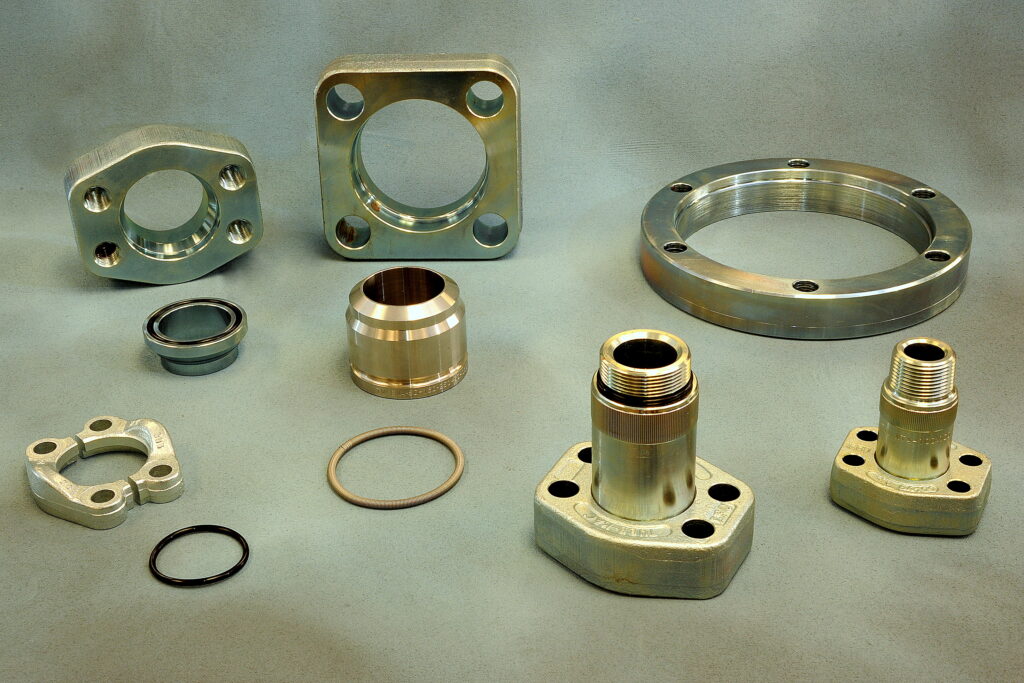

Tube-Mac® manufactures and supplies a large range of high pressure thread flange adapters along with pipe flanges. Popular SAE flanges are offered in 1/2 in. thru 4 in. butt-weld, socket-weld and split types. ISO high pressure flanges, the accepted international standard are available from 2 1/2 in. to 4 in. TMI® proprietary flanges from 5 in. thru 8 in. butt-weld style completes the product range.

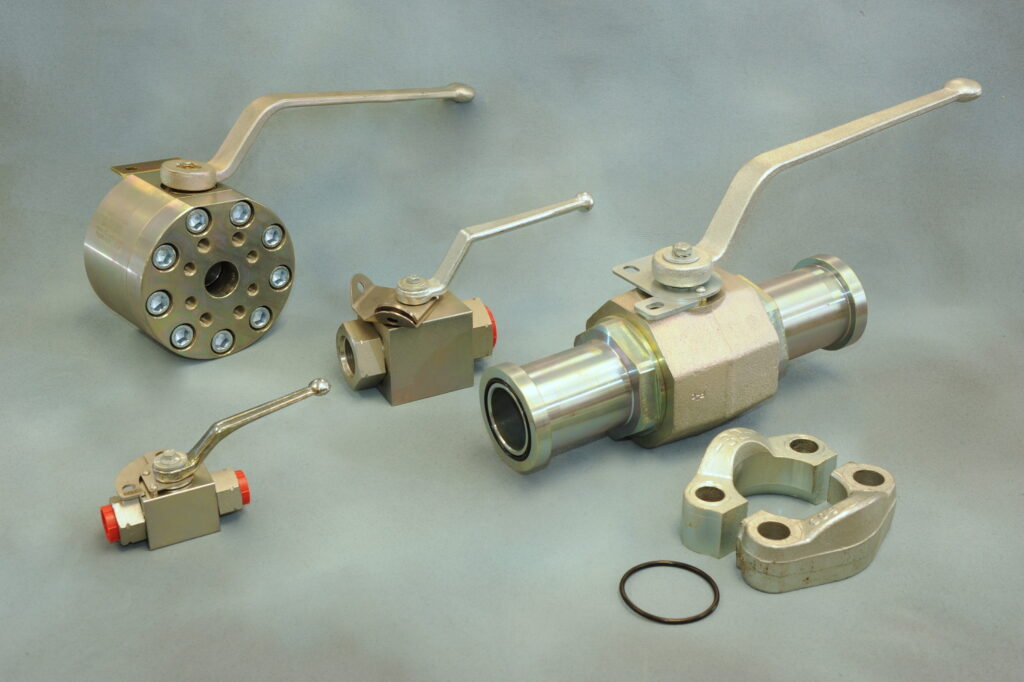

For applications needing pressure and temperature ratings of up to 6,000 PSI and 250° F are, Tube-Mac® provides standard hydraulic ball valves that can withstand these rigorous demands. Full flow capability and rugged construction are notably the best features.

Tube-Mac® supplies ball valves in various port configurations including NPT, SAE O-RING and SAE 4 Bolt Flange Styles. Available materials of construction are carbon or stainless steel, in sizes from 1/8 in. to 4 1/2 in. bore.

We offer standard ball valves including bidirectional and 3-way, 1/4 turn easy opening and operate on the floating ball principle ensuring a positive leak-free seal. Special trunnion ball valves are available for applications requiring low torque to turn or multi-port full pressure requirements.

Valve Types and Options

• Two-way valves, high-pressure carbon and stainless steel
• Two-way valves, low-pressure carbon and stainless steel
• Three-way compact diverter valves
• Multi-way valves
• Cartridge valves
• Manifold valves
• Locking devices
• Actuators
• Special application valves up to 12,000 PSI
